PSB Speakers CustomSound In-Room Subwoofer In Satin Black - CSIR SUB (B)

PSB Speakers CustomSound In-Room Subwoofer In Satin White - CSIR SUB (W)

PSB Speakers CustomSound In-Room Subwoofer In Satin Black - CSIR SUB (B)

SKU : CSIR SUB (B)
SKU: CSIR SUB (W)
SKU: CSIR SUB (B)



This item may have longer wait times.
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
This item may have longer wait times.
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
This item may have longer wait times.
Contact Us For Availability, Limited Quantities May Be Available
Contact Us

Literature

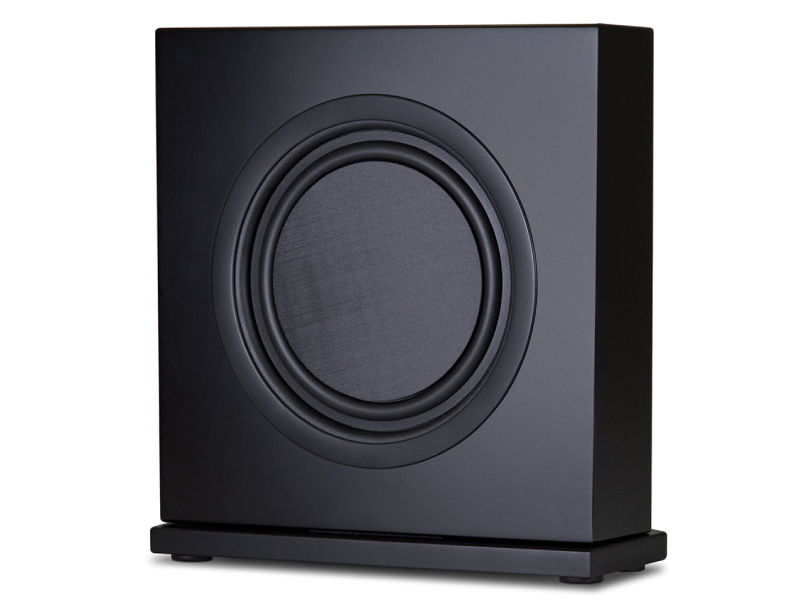

This In-Room Subwoofer offers several elegant and highly versatile solutions. Measuring a mere 15 3⁄4” x 15 3⁄4” x 4 3⁄4”, the CSIR SUB can disappear into the décor of any room, but its stylish design is a feature in and of itself.

Ultra-Slim 10” Passive In-Room Subwoofer

Three Placement Options:

  • On-Wall with supplied mounting bracket
  • On-Floor with supplied base
  • Laid on its back for under or behind furniture

Ideal match with CS500W subwoofer amplifier

CustomSound™ CSIR SUB can be placed in 3 distinct ways. It can be mounted on a narrow, low profile plinth and placed upright. It can also be set on its back allowing it to be tucked out of the way, behind or under furniture. It comes with a mounting bracket, enabling the subwoofer to be wall mounted to maximize floor space.

The 10“, high performance shallow driver offers deep and resonant bass well beyond its modest size.

  • High excursion, shallow driver with Glass fiber / PMI
  • Foam sandwich cone, dual rubber surround
  • Renowned PSB sonic signature, well suited for either music or home theater
  • Design and final voicing engineered by Paul Barton
  • ISO Acoustic feet for improved isolation and sound clarity
  • Ideal match with CS500W subwoofer amplifier
  • Gross Dimensions (w/o base):15¾ x 15¾ x 4¾” (W x H x D)
  • Gross Dimensions (w/ base):15¾ x 17 x 5¼” (W x H x D)
Specifications
Frequency Response25-150Hz
Recommended Power40-200 Watts
Available FinishesSatin Black, Satin White
Sensitivity
Anechoic Chamber 88dB
Listening Room90dB
Impedence
Nominal8 Ohms
Acoustic Design
Woofer (Nominal)10” (254mm), Glass fiber / PMI foam sandwich cone, Die Cast Basket, Rubber Surround, Balanced Drive motor structure
Construction
Cabinet MDF
Grille FaceAcoustic Transparent Cloth
Grille FrameWood
Size (W x H x D)
Net Width15 3/4 “(400mm)
Net Hight17″ (432mm)
Net Depth5 1⁄4” (133mm)
Shipping Information
Net Width21 1/4” (540mm)
Net Hight21 5/8” (550mm)
Net Depth11” (280mm)
Net Weight24 4/5 lbs
Shipping Weight32 1/2 lbs
Brackets
Wall BracketIncluded
Floor StandIncluded
