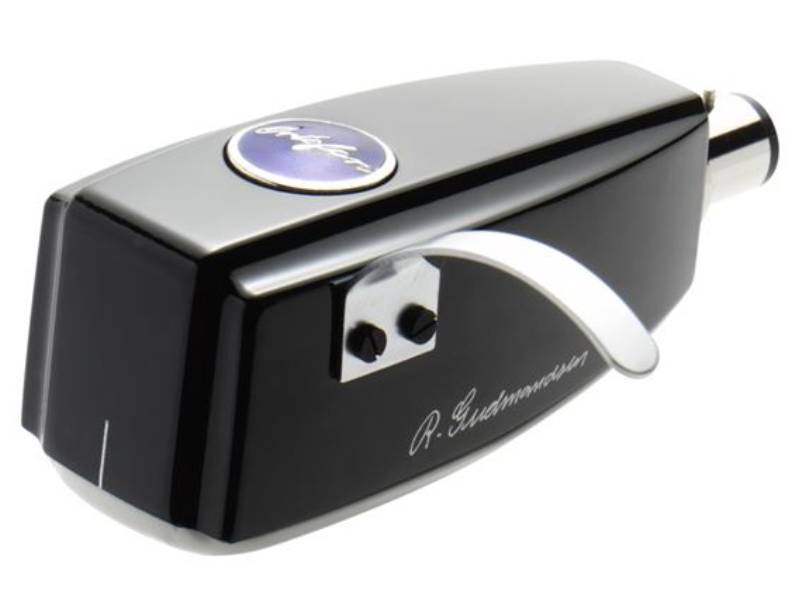

Ortofon Moving Coil Cartridge in Shiny Black - SPU Meister Silver G MKII
This item may have longer wait times.
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Literature
You may also like
The SPU Meister Silver G MkII has been improved on coil winding material, stylus and magnet.
The cartridge has been outfitted with high purity multi-conductor 6–nines Silver wire (of a purity of 99,9999 %) for a more open and revealing high end presentation.
The nude elliptical stylus tip mass has been decreased by a factor of more than 50%, resulting in increased tracking ability and reproduction of microdynamic detail.
The generator system has been revised to produce a slightly higher output to ensure compatibility with a wider range of moving coil transformers and active MC preamplifiers.
| Specifications | |
|---|---|
| Output voltage | 1000 Hz 5cm/sec - 0.3 mV |
| Channel balance | 1 kHz < 1 dB |
| Channel separation | 1 kHz > 20 dB |
| Channel separation | 15 kHz > 10 dB |
| Frequency response | 20 - 20,000 Hz +2/-1 dB |
| Tracking ability at 315 Hz at recommended tracking force *) | > 70 μm Compliance, dynamic, lateral - 8 μm/mN |
| Stylus type | Nude Elliptical |
| Stylus tip radius | r/R 8/18 μm |
| Tracking force range | 3.0-5.0 g (30-50 mN) |
| Tracking force recommended | 4.00 g (40 mN) |
| Tracking angle | 20º*) Typical value |
| Internal impedance, DC resistance | 3 ohm |
| Recommended load impedance | > 10 ohm |
| Coilwire material | Silver, 6-nines |
| Cartridge body material | Ground wood and resin composite |
| Cartridge colour | Shiny black |
| Cartridge Weight | 28 gram |
