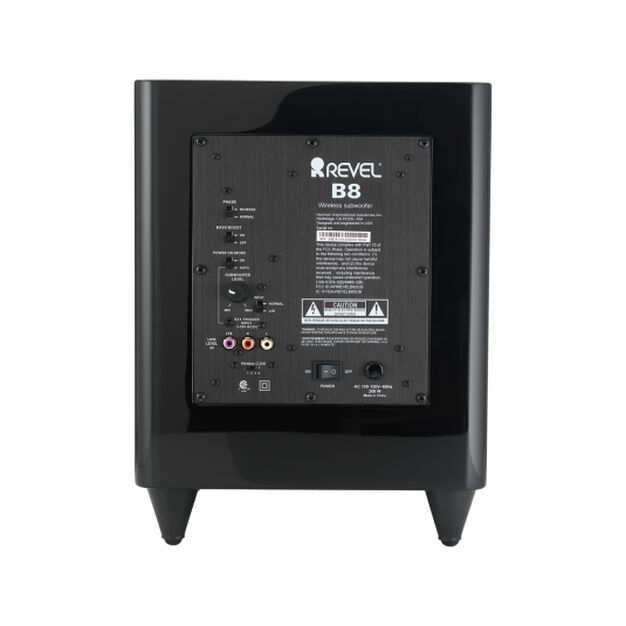

Revel Compact & Powerful Wireless Subwoofer - REVB8BLKAM
You may also like
B8 Highlights
- 8-inch Down-firing Cone Transducer
- Built-in 200-watt Amplifier
- Wireless Transmitter
- 2 Automotive-Grade High-Gloss Finishes Available
The Revel Concerta B8 is a compact and powerful wireless subwoofer with accurate and dynamic low-frequency performance that brings your audio entertainment to life.
The B8 features an 8-inch down-firing cone transducer and built-in high-performance 200-watt amplifier for impactful and memorable sound quality deserving of the Revel name. The B8 is available in two automotive-grade, high-gloss finishes – white and black – for stylish and elegant appearance. The wireless transmitter and space-efficient design allow you to place it anywhere in your room without having to run a cable to it. Add a B8 to your M8 SP2 and SP5 Satellite Packages for a complete, multi-channel Revel home theater system at unprecedented affordability. The B8 can also be used to complement your Revel Concerta2 and Architectural Series loudspeakers.
| Specification | |
|---|---|
| Low Frequency Transducer | 8-inch (200mm) Down-firing Cone |
| Amplifier Power | 200 Watts (continuous), 400 Watts (peak) |
| Frequency Response | 45Hz – 200Hz |
| Controls | Volume, Phase, Base Boost |
| Connections | LFE (RCA-type); left and right line-level (RCA-type) |
| Enclosure Type | Sealed |
| External Trigger Input Voltage | 3-30 Volts, AC or DC |
| Subwoofer Power Requirement | 120V, 60Hz (USA), 220V – 240V, 50/60Hz (EU) |
| Subwoofer Power Consumption | < 0.5W |
| Subwoofer Dimensions (H/W/D) | 13 29/32” x 10 ½” x 10 ½” (353mm x 267mm x267mm) |
| Subwoofer Weight | 19.8 lbs (9kg) |
| Transmitter Power Requirement | 100 – 240V AC, 50/60Hz |
| Transmitter Power Consumption | < 0.5W |
| Transmitter Unit Dimensions (H/W/D) | 1 3/8” x 5” x 3 1/2” (35mm x 127mm x 89mm) |
| Transmitter Unit Weight | 0.26 lbs (117g) |
| Transmitter Frequency Range | 2403 – 2472mHz |
| Max Transmitting Power | 10dBm |
