Project Audio Phono Box MM/MC Preamplifier Black - PJ35827210
$179.99
Sale Ends 31st December 2025
This item may have longer wait times.
Contact Us For Availability, Limited Quantities May Be Available
Contact Us
Literature

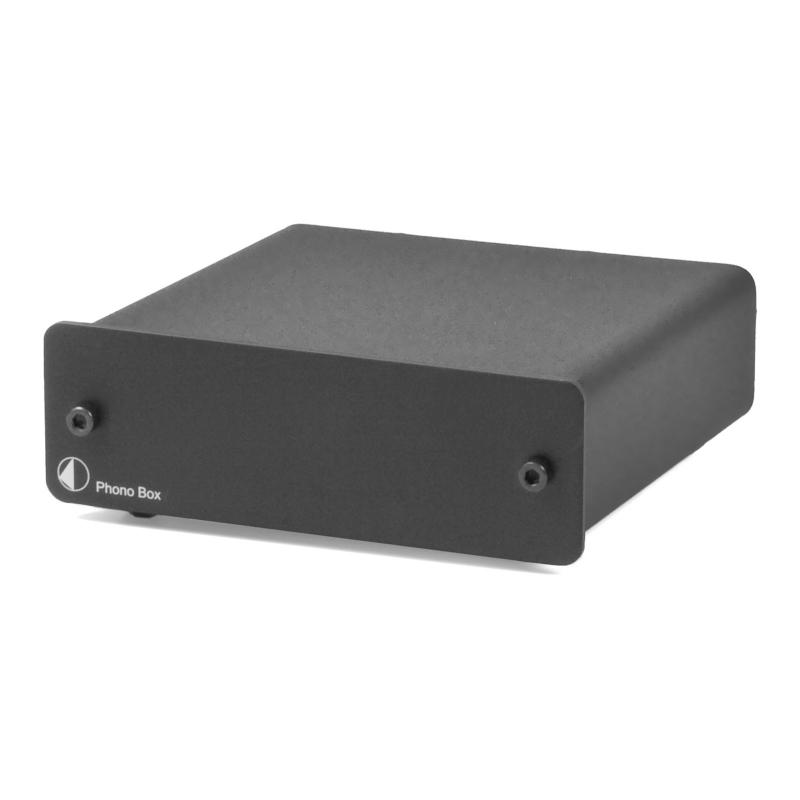

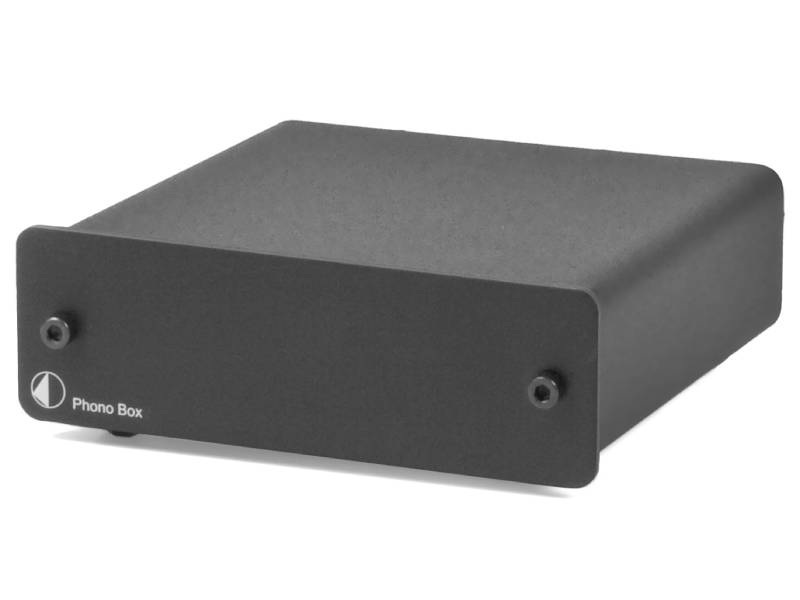

Phono Box: Best buy classic for pure vinyl listening pleasure!
Today, many amplifiers do not have a specific phono cartridge input. Phono Box is an ideal phono preamplifier for these hifi system and accepts both MM and MC cartridges. The analogue output of Phono Box can easily be connected to a line-input (AUX,…) of your amplifier.
Features

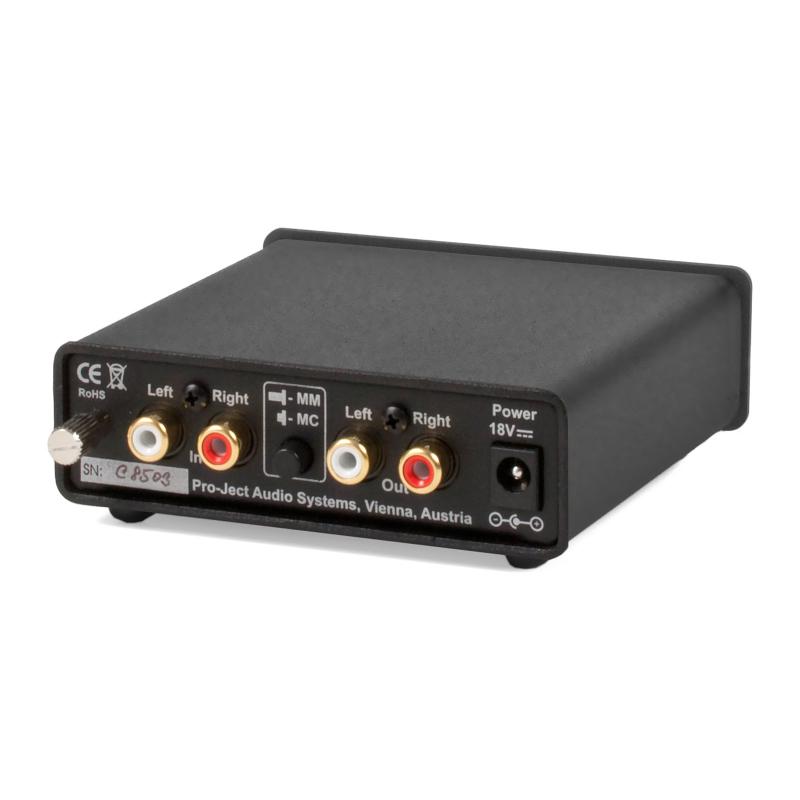

- Preamplifier for MM or MC with switch on rear panel
- Best buy classic
- DC power supply (< 1 watt standby power)
- Precise RIAA equalisation
- Low noise ICs
- Output stage with ultra-low impedance
- Gold-plated RCA sockets
- Small size for installation near recordplayer
- Faceplate available in black and silver
| Specifications | |
|---|---|
| Input impedance, MM | 47 kohms/120 pF |
| Input impedance, MC | 100 ohms / 120 pF |
| Gain, MM | 40 dB |
| Output voltage typically | 300 mV/1 kHz at 3 mV/1 kHz (MM input) |
| Gain, MC | 60 dB |
| Output voltage typically | 300 mV / 1 kHz at 0,3mV/1 kHz (MC input) |
| Max. output | 9.5V (1kHz) |
| Noise floor, MM | 94 dBA |
| Noise floor, MC | 75 dBA |
| THD, MM | 0,01% |
| THD, MC | 0,05% |
| RIAA-equalisation curve accuracy | 20 Hz - 20 kHz / max. 0,5 dB |
| Outboard power supply | 18V / 200 mA DC, suitable for your country's mains supply |
| Standby power consumption | < 1 watts |
| Dimensions W x H x D | 103 x 36 x 104 (115 mm with sockets) |
| Weight | 570 g |
