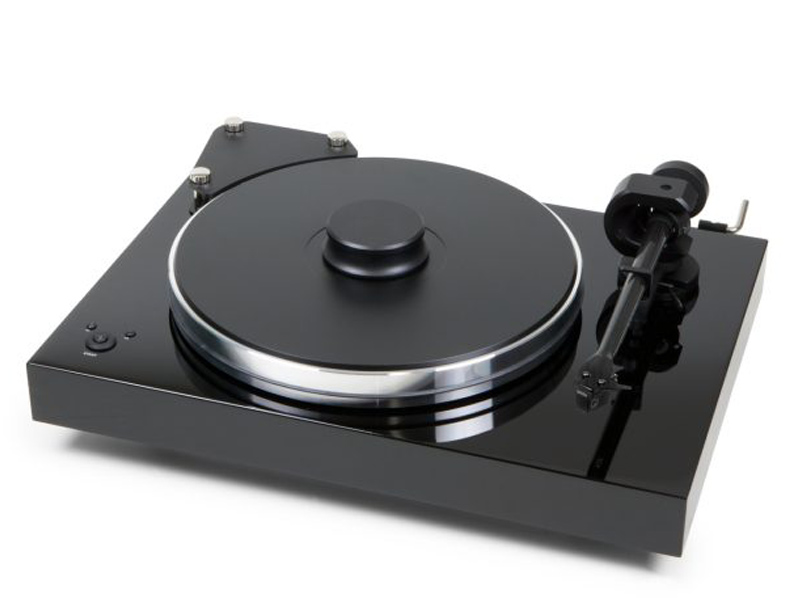

Project Audio Highend turntable with 9" evo tonearm - Xtension 9 Evolution - Piano - PJ50439092
You may also like
Superlative vinyl performance from a compact luxurious turntable/arm configuration!
Xtension 9 Evolution incorporates all our turntable design experience from more than 20 years in a slim-line size to fit standard audio racks. Xtension 9 chassis is made from MDF filled with metal granulate, that gives high mass and is non-resonant. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 16 kg total turntable mass. The result is a unique combination of ‘mass loaded’ and ‘floating turntable’ design principles. Instead of pure metal for the main platter, we’ve found a perfect alloy which we damped on with thermo plastic elastomers (TPE). Additionally we’ve placed recycled Vinyl records on top (which acts as a perfect mat) and bake this ‘sandwich’ before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension. Pro-Ject Xtension 9 Evolution includes a top-class highend tonearm „9cc Evolution“ and comes complete with a beautiful dustcover.
3 different high gloss lacquer finish options are available: mahogany, piano, olive, red and white.
XLR Option
Pro-Ject Audio Systems offers their highend turntables with premium 5pin>RCA unbalanced arm cable or – by request – with premium balanced 5pin>XLR connection to Pro-Ject Phono Box RS preamplifier. Phono Box RS offers balanced phono inputs, what guarantees superior results in highend vinyl reproduction with a balanced signal source.
NOTE: The signal source and the receiving device have to be equipped with balanced connections. Transmission of audio signals in a balanced mode reduce the influence of interference due to external stray electric fields significantly.
Features
- Heavy 16 kg belt drive turntable
- Mass loaded magnetic floating subchassis
- Precision balanced sandwich-platter
- Inverted ceramic ball bearing with magnetic support
- Heavy weight record clamp
- MDF chassis filled with metal granulate with low levels of resonance and high mass
- Electronic speed control 33/45 rpm
- Tonearm 9cc Evolution made from carbon fibre
- Inverted tonearm bearings (ABEC 7 quality)
- Dust cover included
| Specifications | |
|---|---|
| Speed | 33, 45 (electronic speed change) |
| Principle | Belt drive |
| Platter | 300 mm aluminium (TPE damped) |
| Main bearing | Inverted stainless steel with ceramic ball with antimagnetic support |
| Wow & flutter | ± 0.10% (max) |
| Speed variance | ± 0.09% (max) |
| Signal to Noise | 73 dB |
| Tonearm | 9” cc EVO, Carbon |
| Effective arm length | 230 mm |
| Effective tonearmmass | 8.5 g |
| Overhang | 18.0 mm |
| Tracking force range | 0 - 25 mN |
| Included accessory | Power supply, dust cover |
| Power consumption | 4 Watts max / < 1 Watt standby |
| Dimensions | 465 x 185 x 350 mm (WxHxD) |
| Weight | 18.0 kg net |
