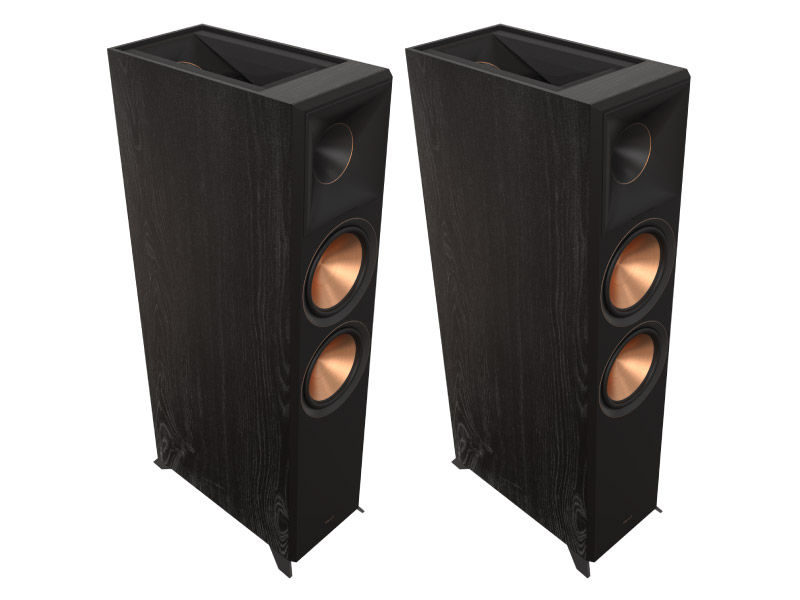

Klipsch Dolby Atmos Floorstanding Speakers in Ebony - RP8060FABII
Klipsch Dolby Atmos Floorstanding Speakers in Walnut - RP8060FAWII
Klipsch Dolby Atmos Floorstanding Speakers in Ebony - RP8060FABII
![](/img/brandlogo/brand_logo_16.png)
![](/desc_images/518/RP8060FABII_0.png)

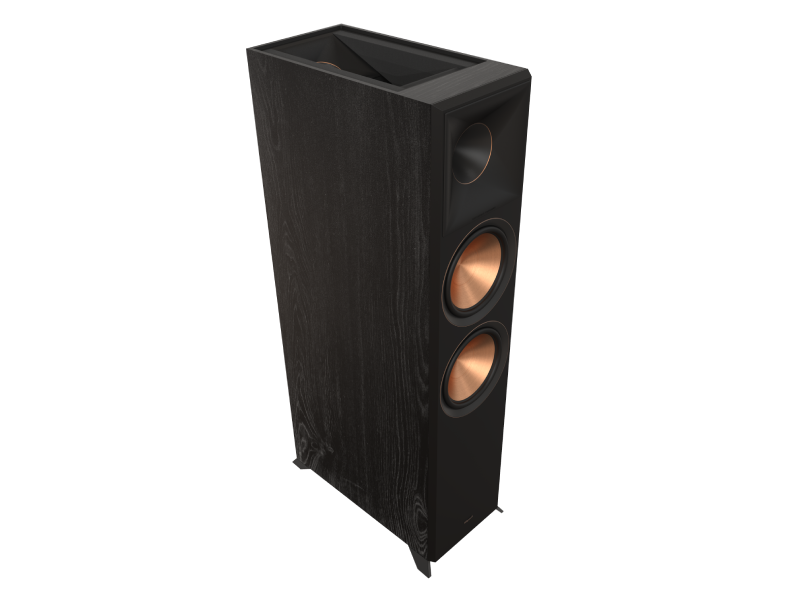

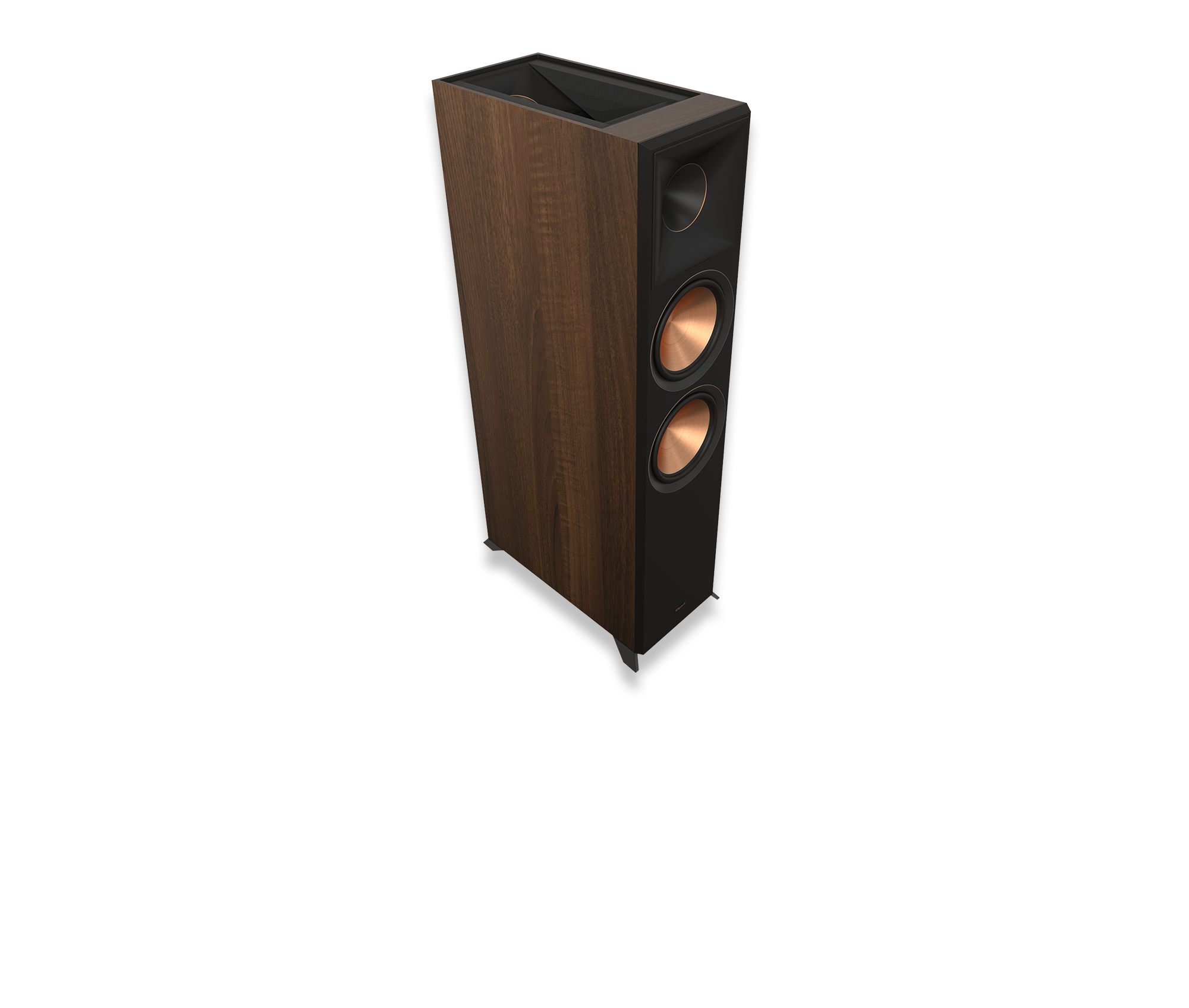

RP-8060FA II
DOLBY ATMOS FLOORSTANDING SPEAKER
![](/desc_images/518/RP8060FABII_1.jpg)

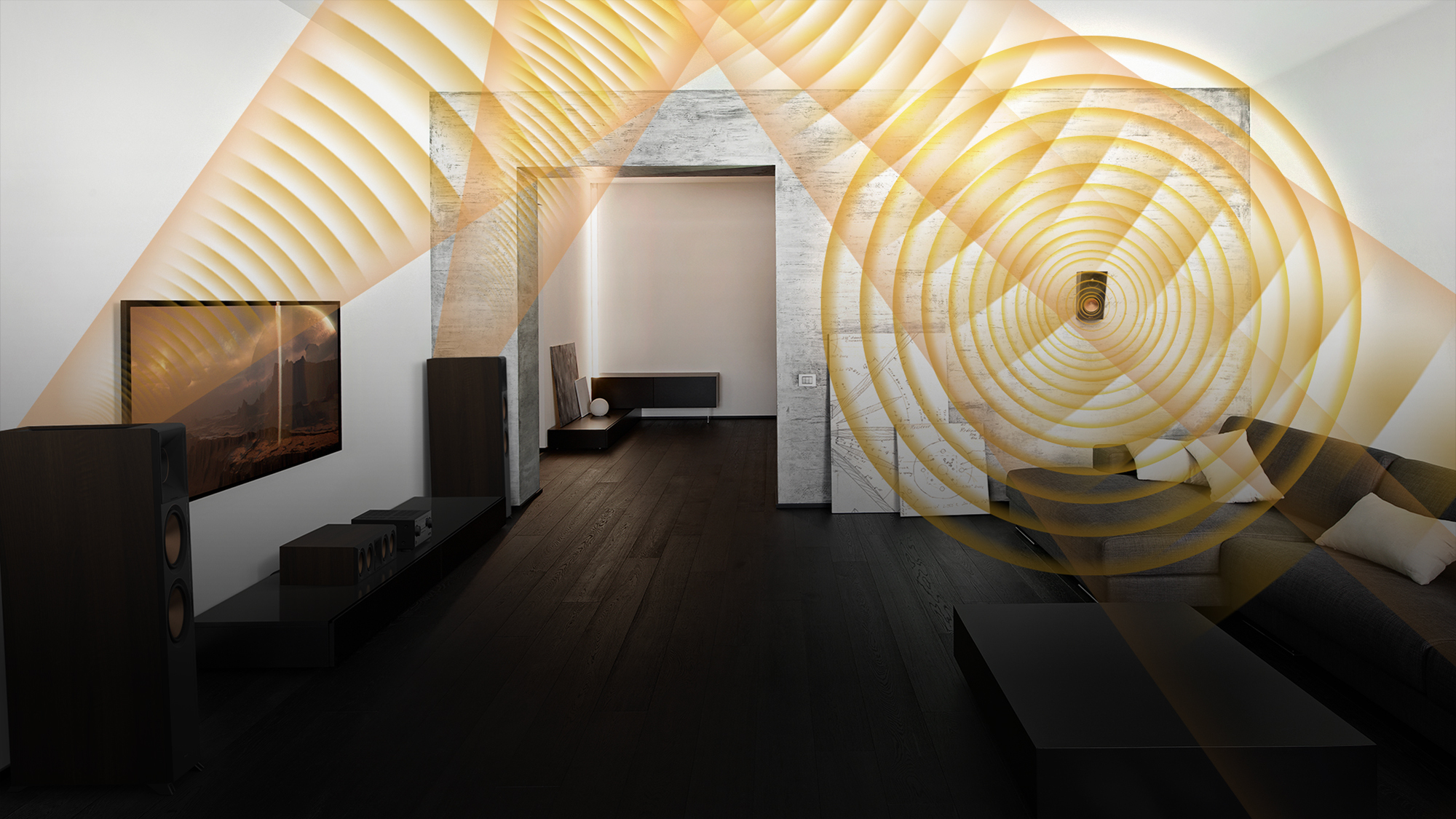

REACH NEW HEIGHTS
Our proprietary speaker technologies are ideal for the most immersive 360° Dolby Atmos® listening experience for your movies, music, and gaming. Controlled directivity ensures precise aim at the listener, while Dolby Atmos delivers sound from above and all around the room.
![](/desc_images/518/RP8060FABII_2.png)

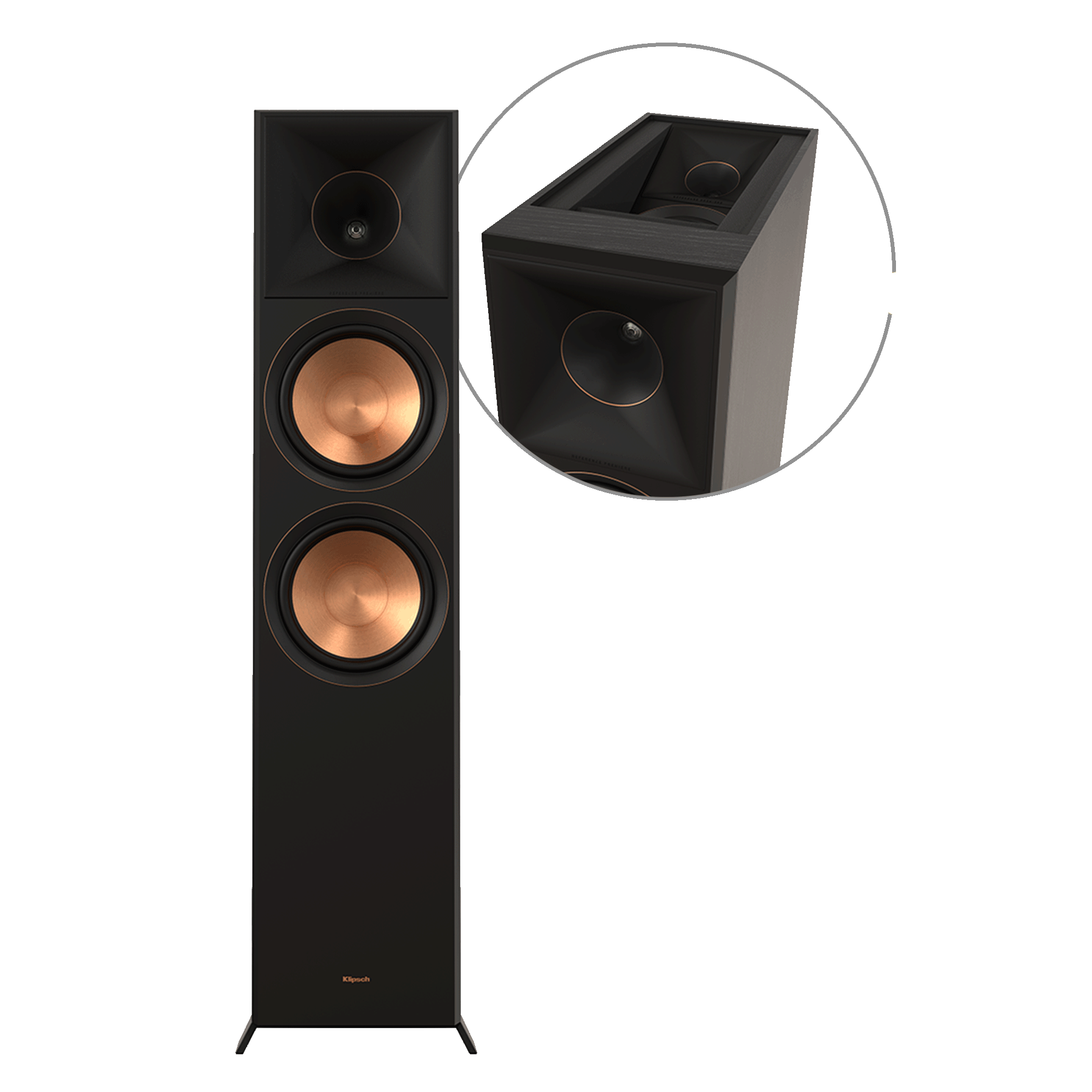

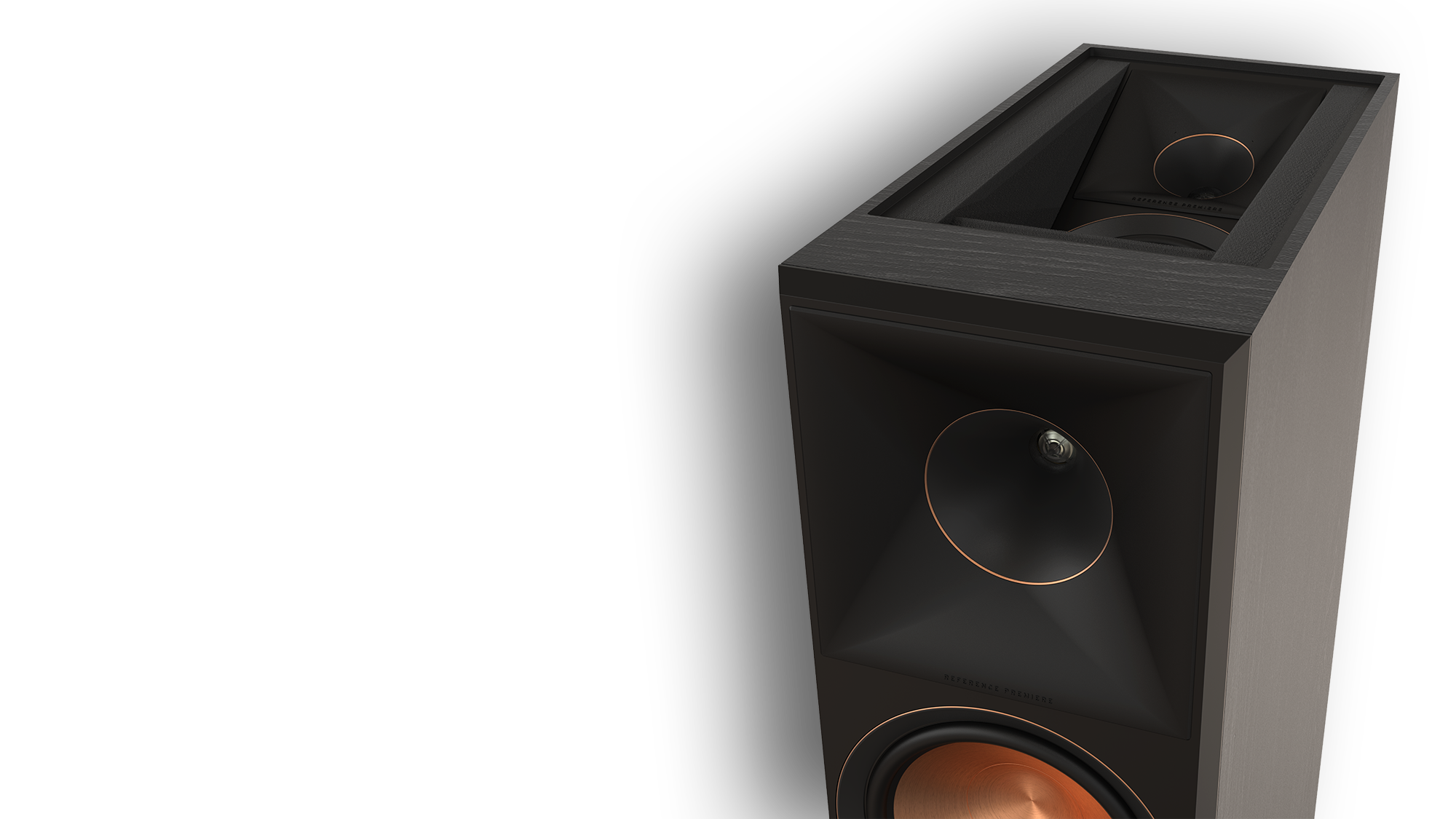

ELEVATION SPEAKER BUILT-IN
RP-8060FA II Dolby Atmos floorstanding speakers feature a high-performance, 6.5" 2-way up-firing Dolby Atmos® speaker integrated into the top for an awe-inspiring, all-encompassing experience. It's a perfectly matched setup that virtually disappears thanks to integrated speaker terminals.
![](/desc_images/518/RP8060FABII_3.jpg)

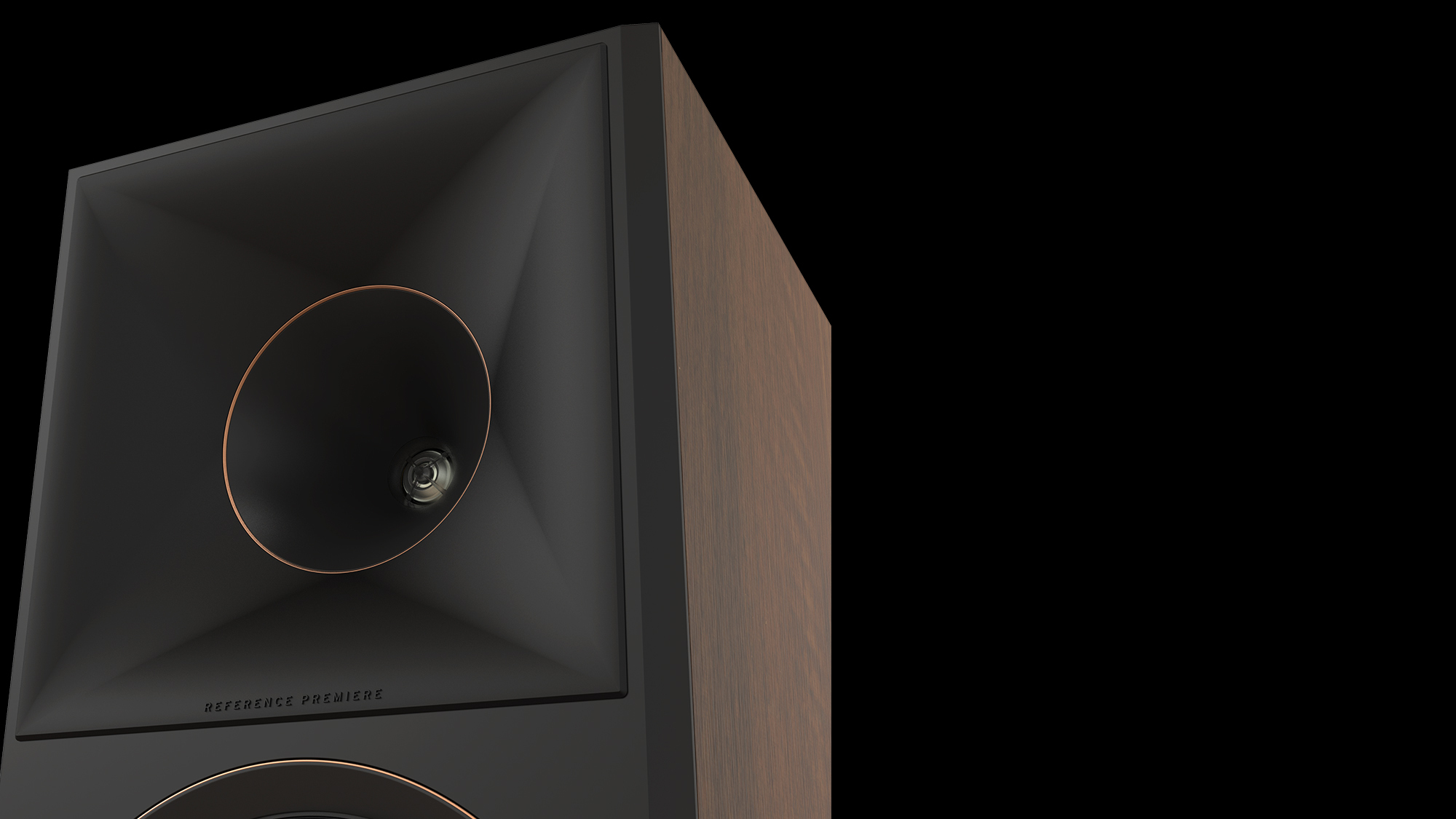

BIGGER HORN, BETTER SOUND
A new, larger 90° x 90° silicone composite hybrid Tractrix® horn provides incredibly efficient transfer of high-frequency waves into the listening area for crisper, clearer sound. The phase plug and compression molded silicone face ensure smooth frequency response.
![](/desc_images/518/RP8060FABII_4.png)

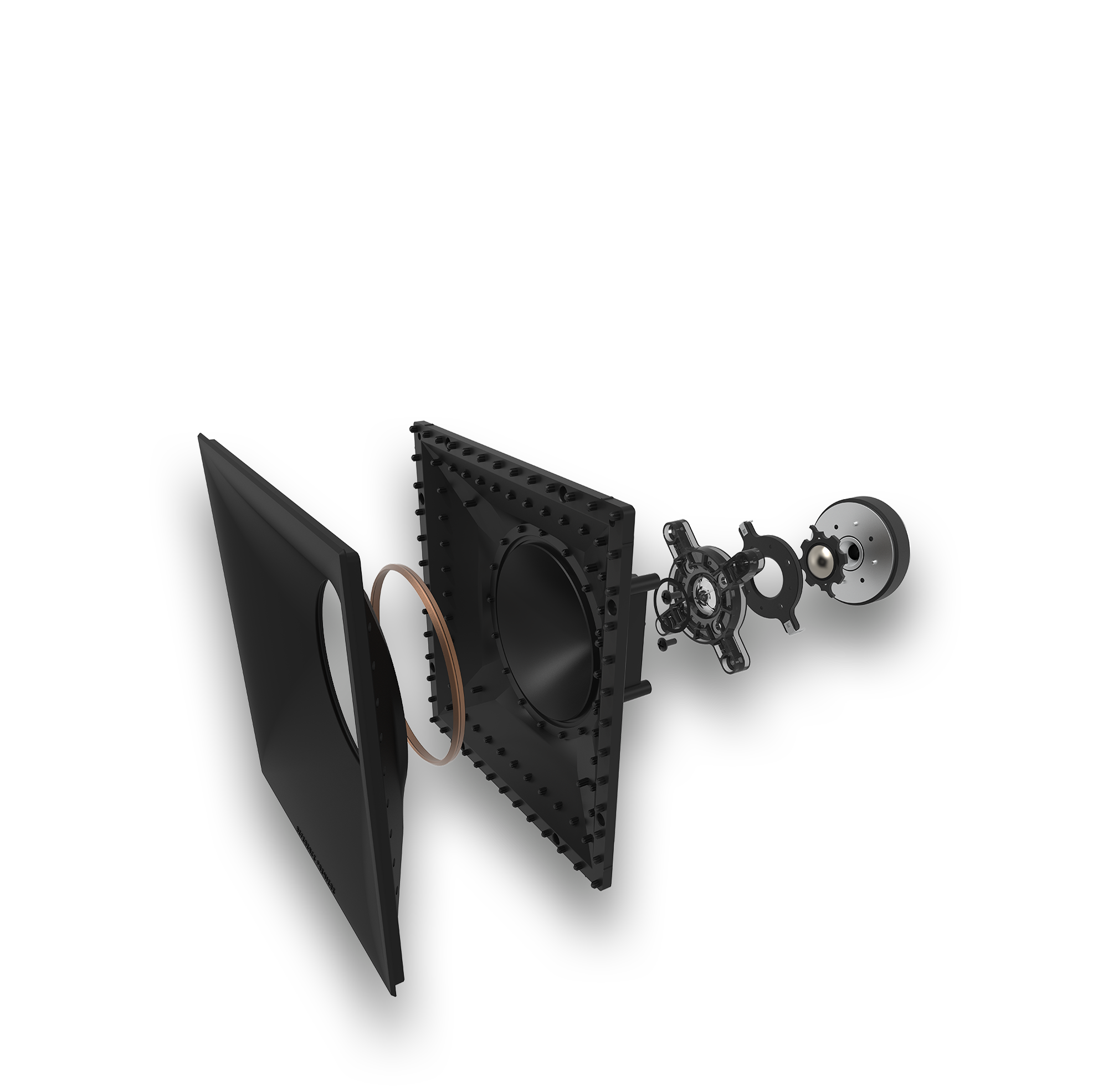

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive 1" LTS minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference Premiere Series, making it a core component of some of the best speakers in the world.
![](/desc_images/518/RP8060FABII_5.jpg)

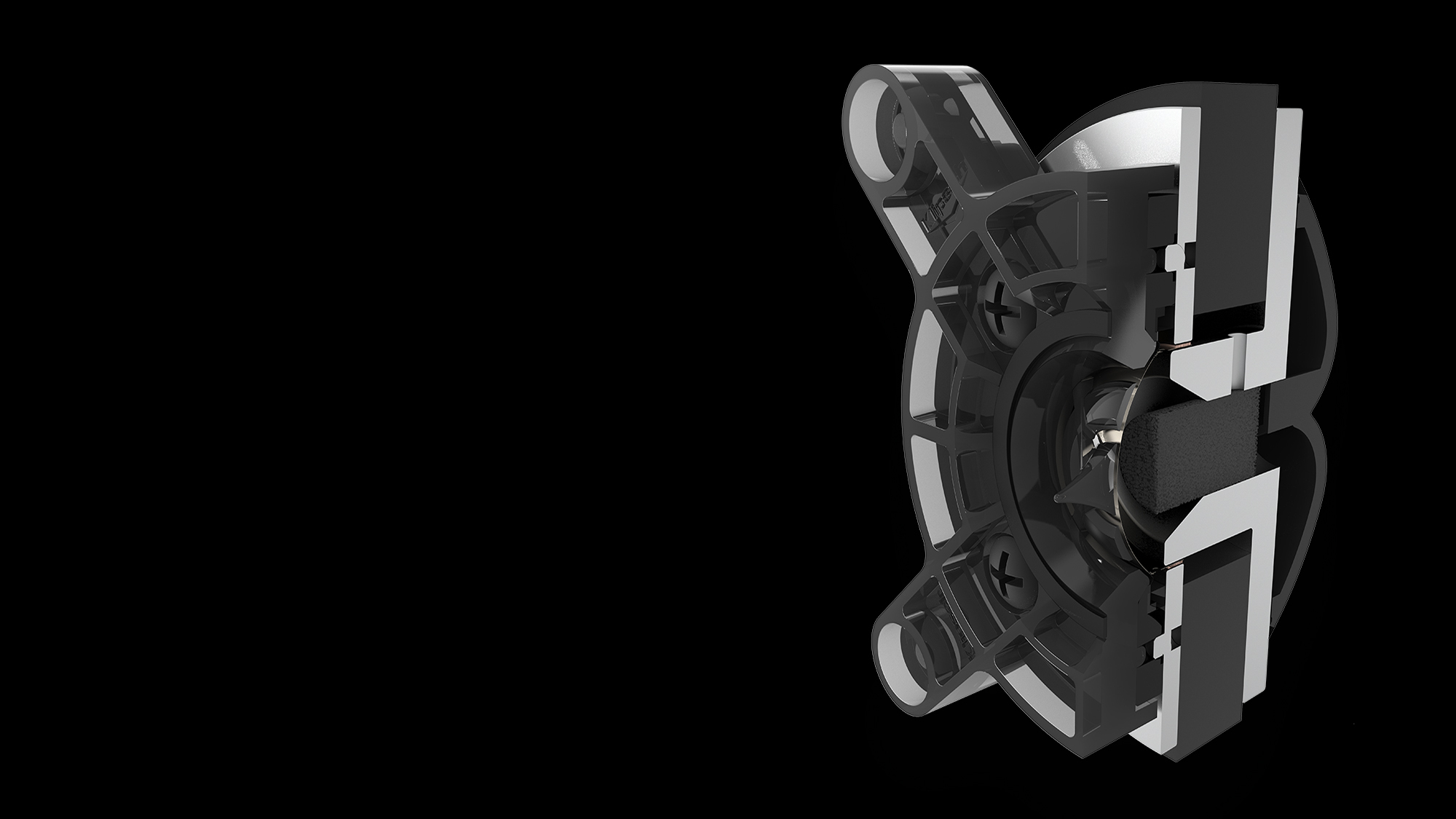

VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high-frequency reproduction.
![](/desc_images/518/RP8060FABII_6.png)

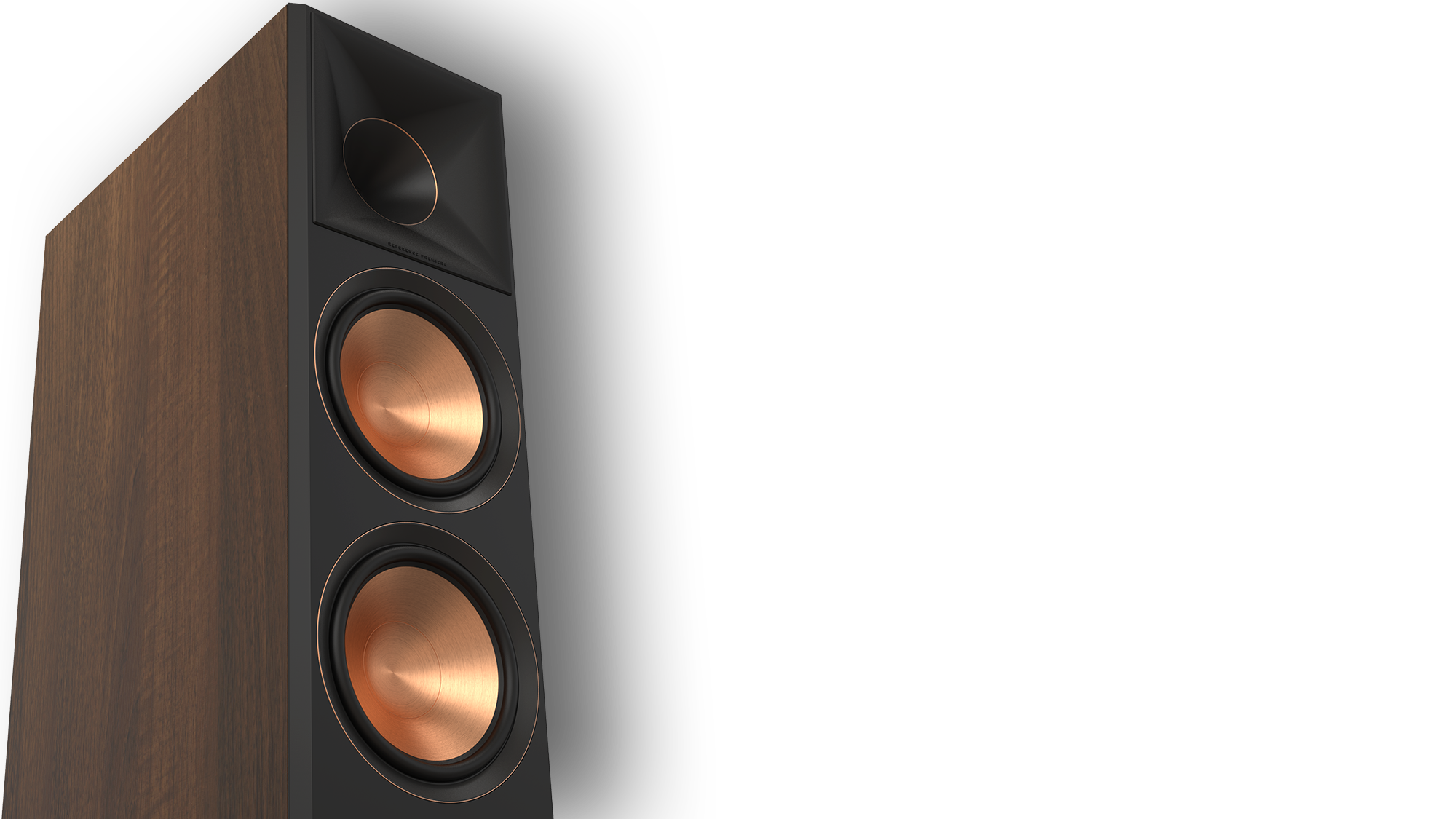

ALL-NEW CERAMETALLIC WOOFERS
A signature feature on the Reference Premiere series speakers, the dual 8" main channel and 6.5" height channel's Cerametallic™ woofers have been updated for absolutely flawless sound reproduction, minimum distortion, and maximum efficiency. The redesigned woofer will deliver the power, detail, and emotion you expect from a Klipsch Reference Premiere speaker.
![](/desc_images/518/RP8060FABII_7.png)

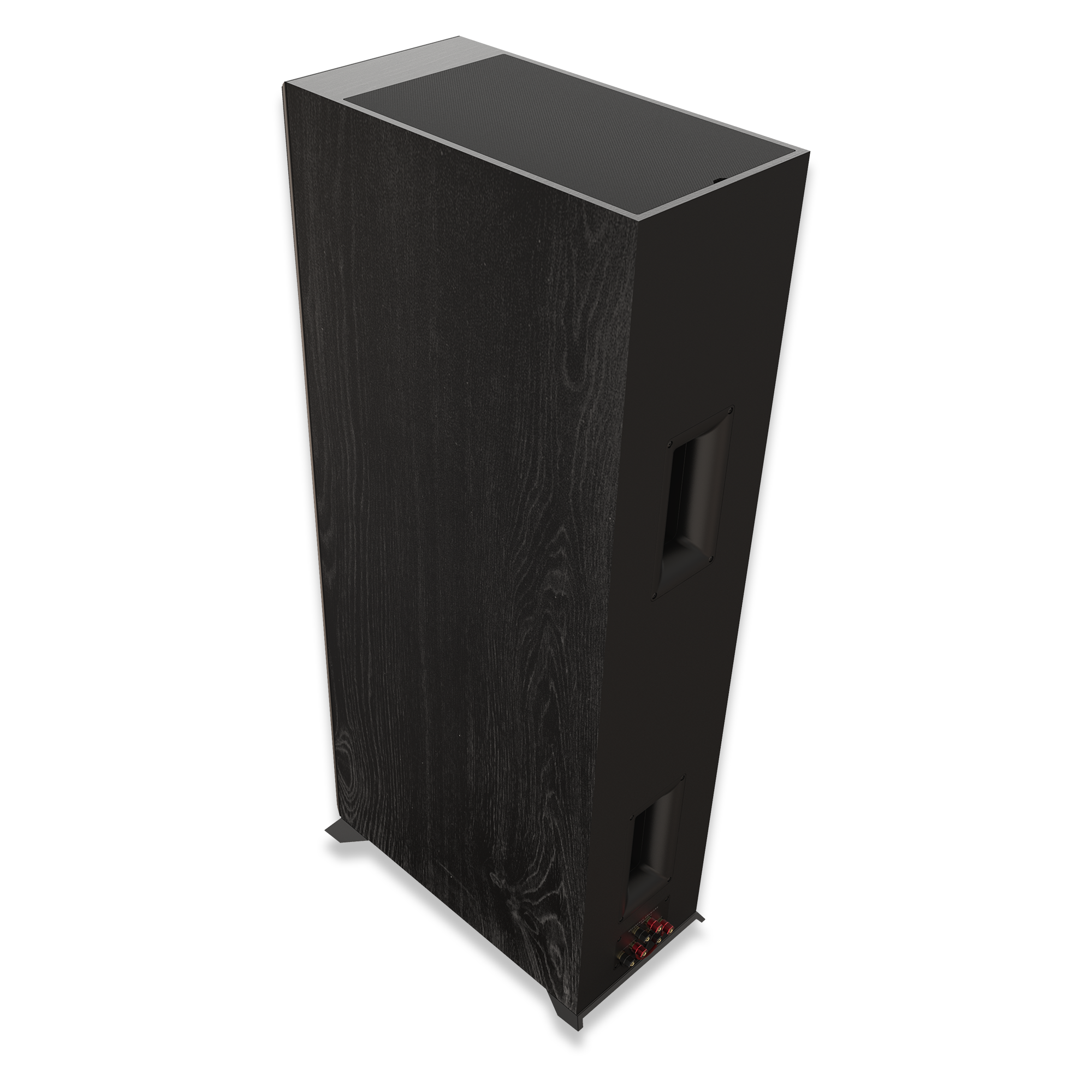

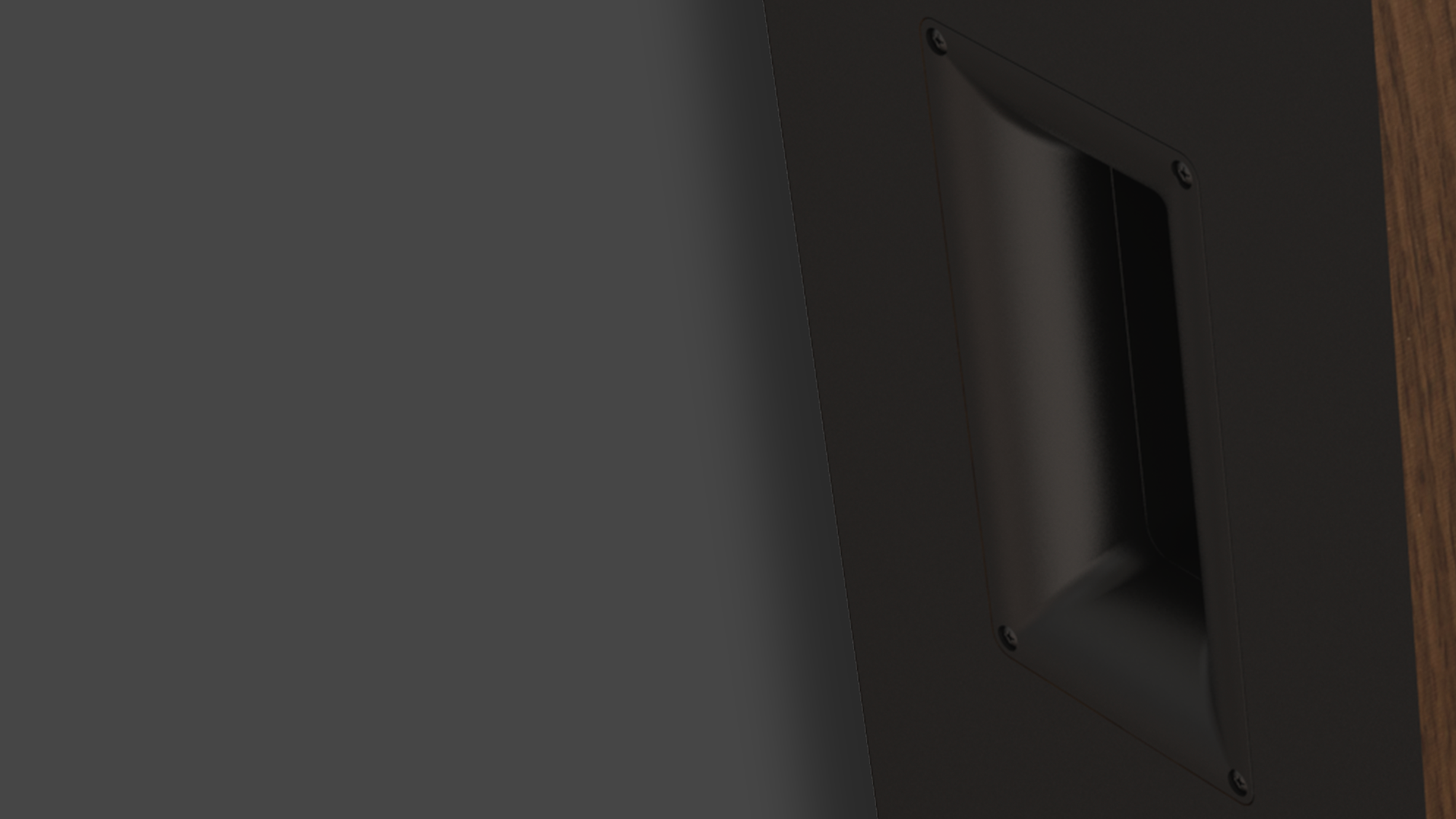

TRACTRIX PORT
Utilizing Tractrix geometry, the Reference Premiere port allows for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies and cleaner, more powerful bass.
![](/desc_images/518/RP8060FABII_8.jpg)

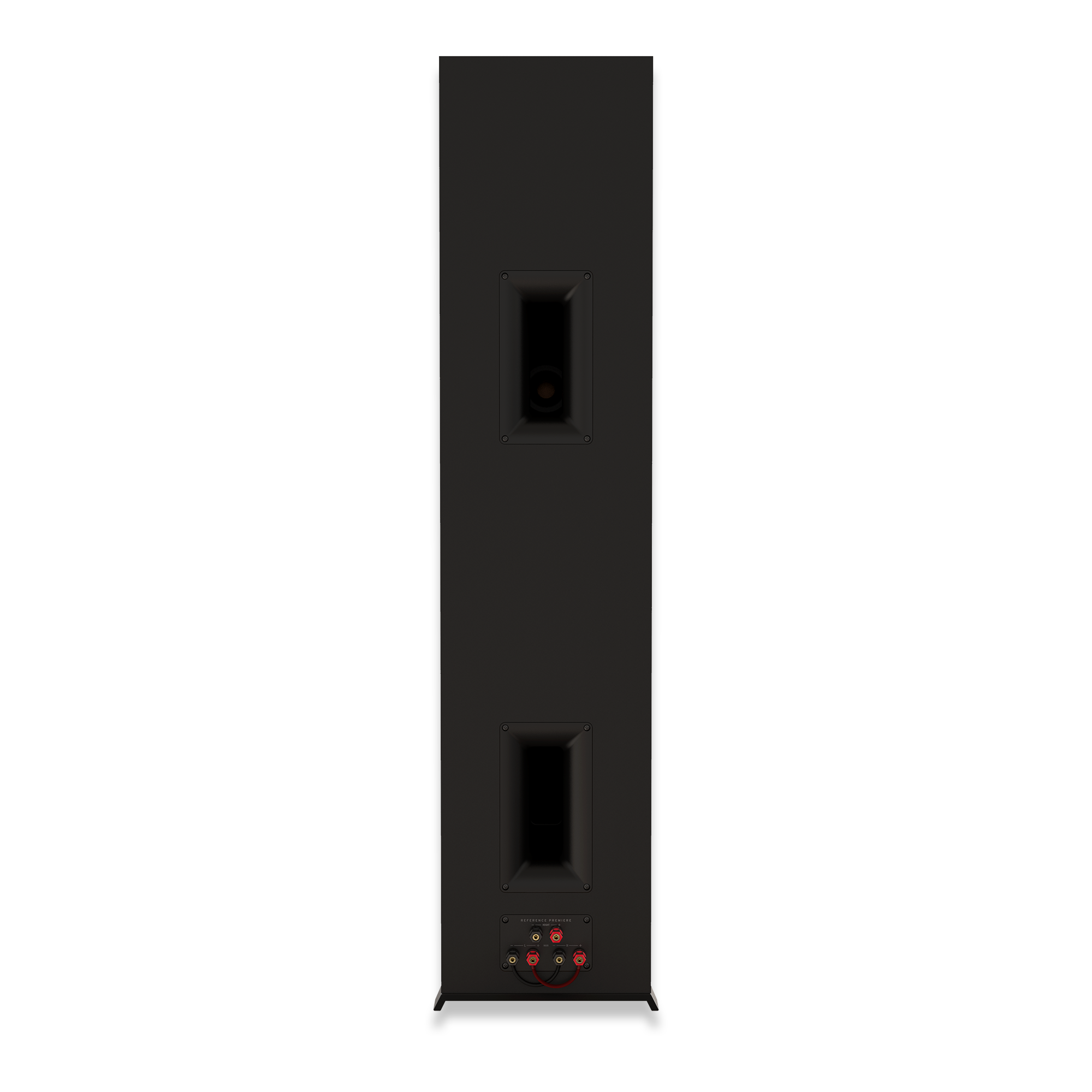

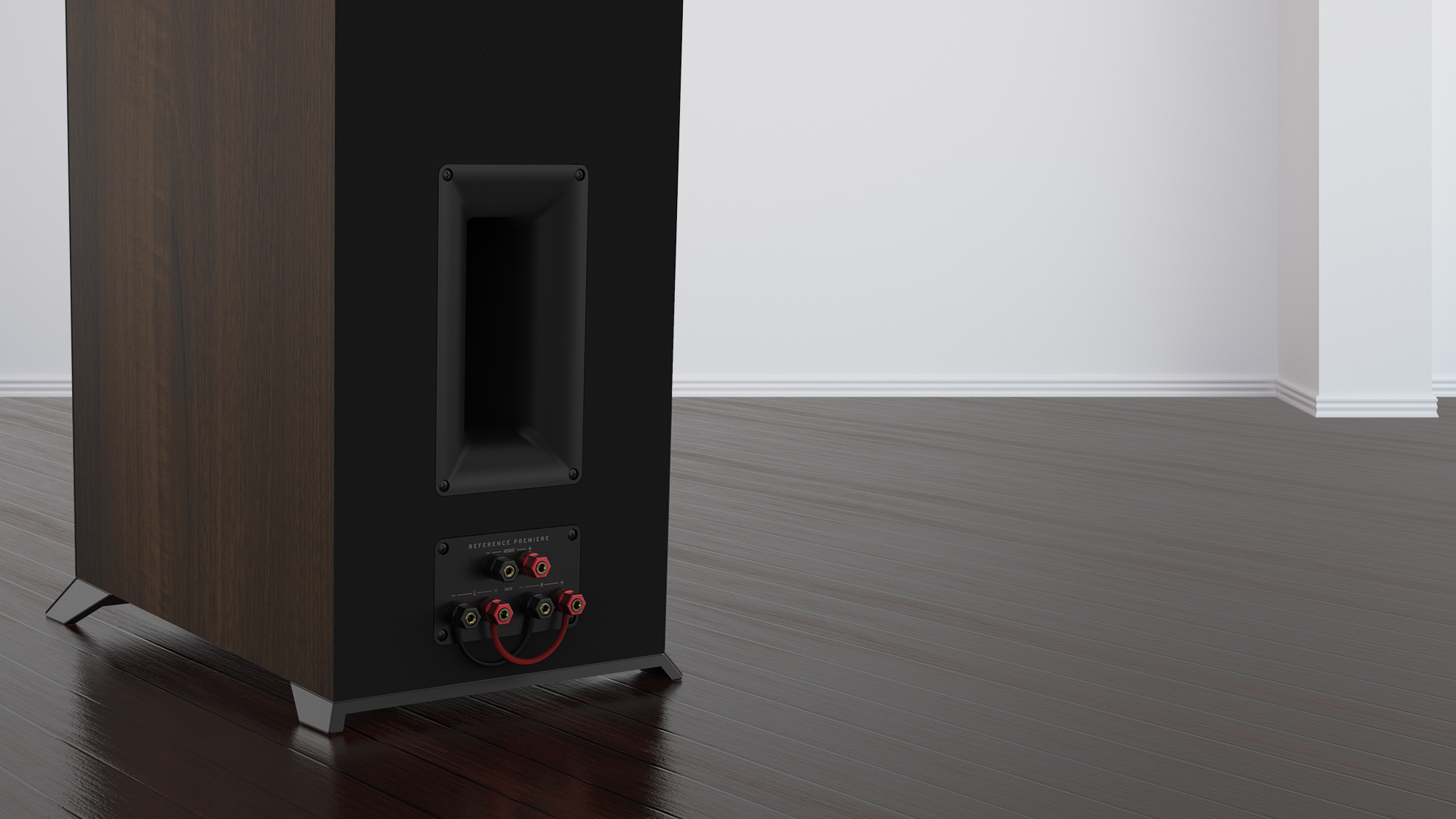

BI-WIRING BI-AMPING CAPABILITY
Dual input terminals for bi-wiring / bi-amping capabilities separate high and low-frequency current into different speaker cables, reducing distortion for clearer midrange. Bi-amping allows for further optimization of performance with separate outboard power amplifiers for the high frequency and low-frequency drivers.
![](/description_images/files/RP8060FABII_09.jpg)

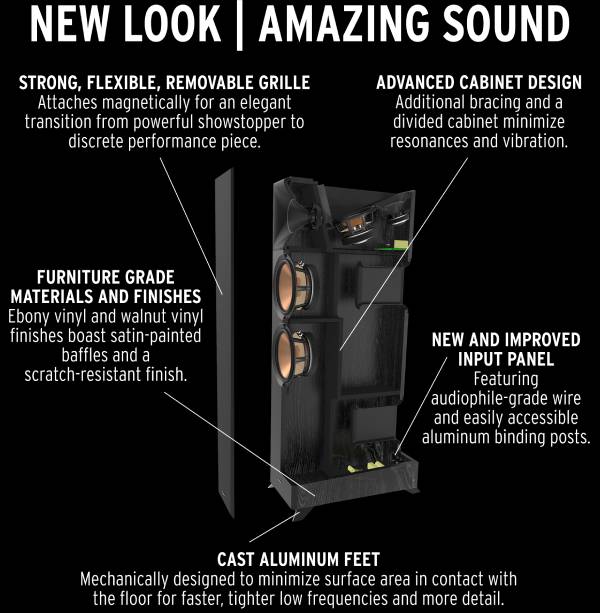

NEW LOOK | AMAZING SOUND
![](/desc_images/518/RP8060FABII_10.jpg)

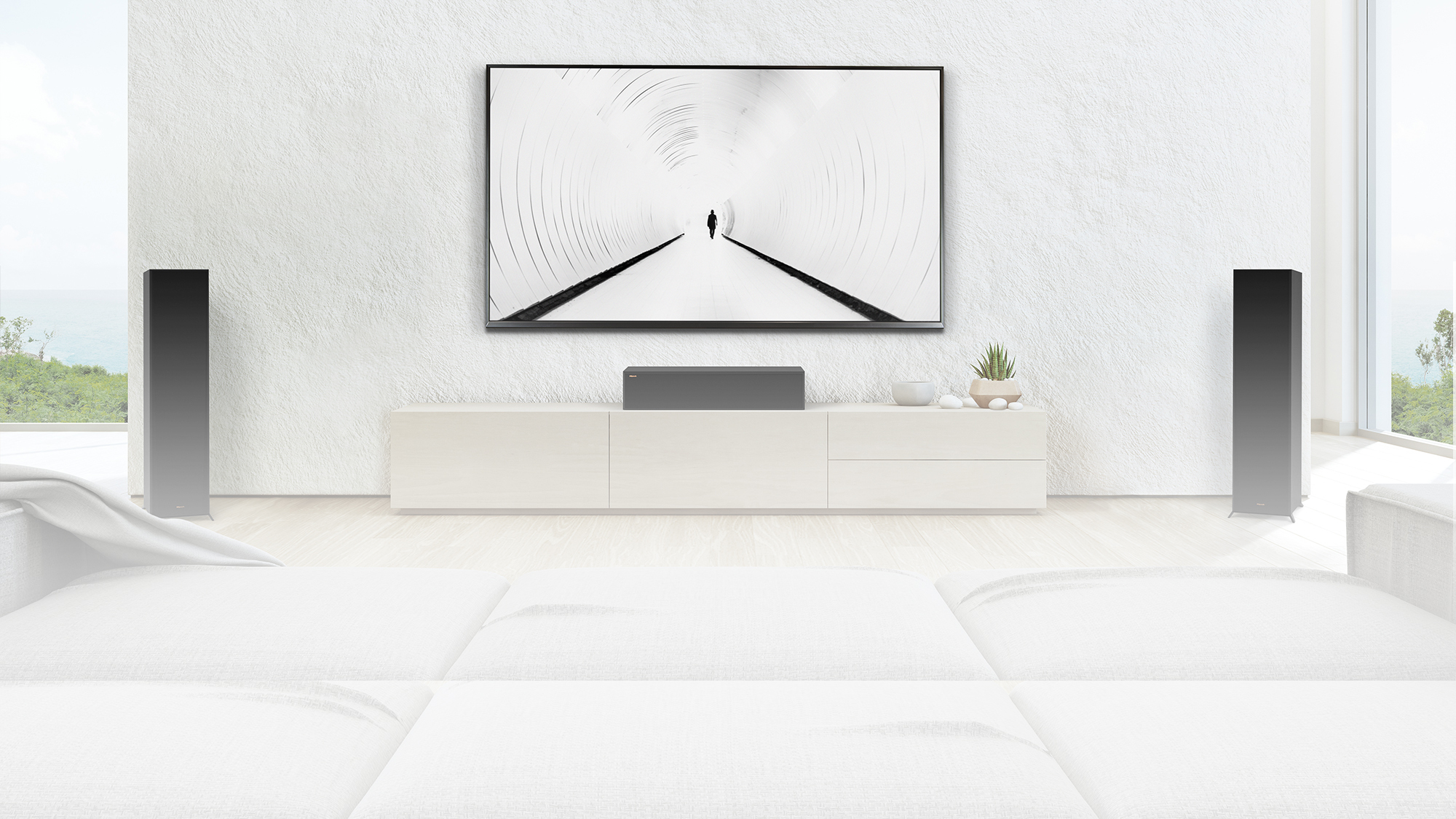

HIGH-FIDELITY HOME AUDIO
Redesigned, the Reference Premiere Series combines Klipsch signature acoustic expertise with cutting-edge technology to deliver the new gold standard in premium home theater and hi-fi listening solutions.
SPECIFICATIONS - HEIGHT CHANNEL | |
---|---|
INPUTS | Single aluminum binding posts |
ENCLOSURE TYPE | Acoustic Suspension |
LOW FREQUENCY DRIVER | 6.5" Cerametallic Cone Woofer |
ENCLOSURE MATERIAL | MDF |
CROSSOVER FREQUENCY | 2kHz |
HIGH FREQUENCY DRIVER | 1" Titanium LTS Tweeter with Hybrid Tractrix Horn |
NOMINAL IMPEDANCE | 8 ohms Compatible |
POWER HANDLING | 100W / 400W |
FREQUENCY RESPONSE | Conforms to Dolby Atmos Specifications |
SENSITIVITY | Conforms to Dolby Atmos Specifications |
SPECIFICATIONS - MAIN CHANNEL | |
FREQUENCY RESPONSE | 35-25kHz +/- 3dB |
SENSITIVITY* | 98dB @ 2.83V / 1m* |
POWER HANDLING (CONT/PEAK) | 150W / 600W |
NOMINAL IMPEDANCE | 8 Ohms Compatible |
CROSSOVER FREQUENCY | 1630Hz |
HIGH FREQUENCY DRIVER | 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn |
LOW FREQUENCY DRIVER | Dual 8” Cerametallic Cone Woofers with Faraday rings |
ENCLOSURE MATERIAL | MDF (Internally Braced) |
ENCLOSURE TYPE | Bass Reflex via dual chamber rear-firing Tractrix® Ports |
INPUTS | Dual aluminum binding posts / bi-wire / bi-amp |
HEIGHT INCHES (MM) | 43.11" (109.5 cm) |
WIDTH INCHES (MM) | 10.84" (27.5 cm) |
DEPTH INCHES (MM) | 20.80 (52.8 cm) |
PRODUCT WEIGHT LBS (KG) | 75.7 lb (34.35kg) |
FINISH | Ebony, Walnut |
INCLUDED ACCESSORIES | Injection molded feet & screws |
